USB3.0 A Type, Receptacle, Through Hole Type, Reflow Soldering, Offset

Product Categories

Shenzhen HuiLy Electronics Co., Ltd.

Contact Now

Name: USB30 A Type Receptacle Through Hole Type Reflow Soldering Offset
Brand: HULYN
Price: 0.2 USD

Place of Origin : CHINA

Brand Name : HULYN

Certification : UL

Model Number : HLU-311412XX

Price : 0.2-0.3

Packaging Details : Tape

Delivery Time : 3-5

Payment Terms : T/T

Supply Ability : 100000 / Month

MOQ : 1000PCS

Contact Now

SPECIFCATIONS:

Contact current Rating:

1.8 Amperes for pin1&pin4.

0.25 Amperes other contacts

Dielectric Withstanding Voltage:AC 100V(RMS)

Insulation resistance:100Megohms Minimum.

Contact Resistance:

3OmΩ Max for pin1&pin4

5OmΩMax for other contacts

Mechanical Characteristics:

Mating Force:3.5 Newtoms.Maximum

Unmating Force:10 Newtoms.Mlnimum.

Operating Temperature:-55 °C+85 °C

USB3.0 A Type, Receptacle, Through Hole Type, Reflow Soldering, Offset

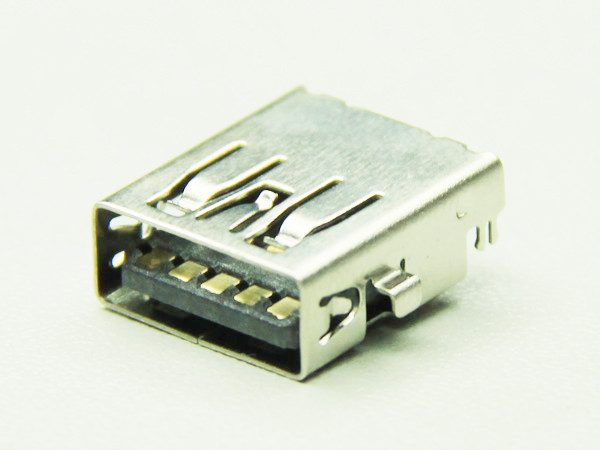

USB3.0 A Type, Receptacle, Through Hole Type, Reflow Soldering, Offset Images
